How to Compare Results Across Segments


Using segmentation to investigate how preferences and attitudes differs among different groups of respondents is a vital step in maximising overall preference for your product portfolio. Conjointly’s Crosstab feature has made comparing over segments easier than ever, helping you find the difference between segments in only a glance.

Interpreting Crosstab results

The Crosstab report automatically generates once you create multiple segments within your report. The tab contains multiple subsections, depending on the experiment type and the presence of additional questions.

These subsections are generated for Generic Conjoint, Brand Specific Conjoint, and MaxDiff Analysis:

  • Attribute importance
  • Preference for levels
  • Marginal willingness to pay
  • Brand preferences for Brand-Specific Conjoints
  • Net best/worst percentages for MaxDiff Analysis

For Claims Test, Product Variant Selector, and Brand-Price Trade-Off these subsections are generated:

  • Summary of preferences and diagnostics
  • Summary of preferences and diagnostics by topic for Claims Test and Product Variant Selector
  • Brand Associations by topic for Claims Test and Product Variant Selector

Crosstab tables can also be generated for additional questions.

Interpreting conjoint crosstab results

Attribute importance

The first section displays the attribute importance for each segment, as well as all responses. The bars represent the total importance score for each attribute, while the green and red background indicate the positive/negative difference of the segment compared to all responses.

For Brand-Specific Conjoints, change the brand displayed by using the drop-down menu.

Crosstab Output 1 Attribute Importance

Preference for levels

The next section shows the preference for each attribute level for all responses and each segment specified. Each bar is again scaled to the value size, and the red / green colour represents the negative / positive deviation from all responses.

For Brand-Specific Conjoints, change the brand displayed by using the drop-down menu.

Crosstab Output 2 Preference For Levels

Marginal willingness to pay

In this tab, the output displays the marginal willingness to pay for different attribute levels across each segment. Similar to the previous sections, the size and colour of the bars represent the value size and deviation from all responses.

The marginal willingness to pay is calculated relative to the first level in each attribute, which is left blank.

For Brand-Specific Conjoints, change the brand displayed by using the drop-down menu.

Crosstab Output 3 Marginal Willingness To Pay

Brand preferences

Only available to Brand-Specific Conjoints, this tab displays attribute and level preferences that was assigned to a brand during setup. Each bar is scaled to its value size, and colour coded based on difference from all responses.

Change the brand selected using the drop-down menu.

Crosstab Output 4 Brand preferences

Net best/worst percentages

Only available to MaxDiff type experiments, this tab displays the net percent each level was chosen as best and worst. Like the other subsections, each bar is scaled to its value size, and colour coded based on difference from all responses.

Crosstab Output 1 Net Best/Worst

Interpreting Claims Test, Product Variant Selector, and Brand-Price Trade-Off crosstab results

Summary of preferences and diagnostics

This subsection displays preference scores, rankings, and diagnostic metrics for each item. The metric displayed can be changed using the drop-down menu above the table. Each bar is scaled to its value size, and colour coded based on difference from all responses.

For diagnostics questions, the metric used depends on the diagnostic question type:

  • Top 2 box for Likert scale and Positive/Negative questions
  • Percentage of respondents who chose each option for multiple choice questions
Crosstab Output 5 Preferences and Diagnostics

Summary of preferences and diagnostics by topic

Only available for Claims Test and Product Variant Selector type experiments, this subsection displays preference scores, rankings, and diagnostic metrics summarised by topics. The metric displayed can be changed using the drop-down menu above the table. Each bar is scaled to its value size, and colour coded based on difference from all responses.

For diagnostics questions, the metric used depends on the diagnostic question type:

  • Top 2 box for Likert scale and Positive/Negative questions
  • Percentage of respondents who chose each option for multiple choice questions
Crosstab Output 6 Preferences and Diagnostics by topic

Brand Associations

Only available for Claims Test and Product Variant Selector type experiments, this subsection display the percentage of respondents who selected each item as being associated with each brand. Each bar is scaled to its value size, and colour coded based on difference from all responses.

The brand shown can be changed using the drop-down menu.

Crosstab Output 7 Brand Associations

Creating and interpreting Crosstab Results for additional questions

Selecting questions and segments for Crosstab

Crosstabs for the first two additional questions will be automatically generated. The questions included in the crosstab can be changed by clicking on Select questions and segments.

The questions and segments to be displayed can then be selected in the pop up. Click on Ok to generate the new results.

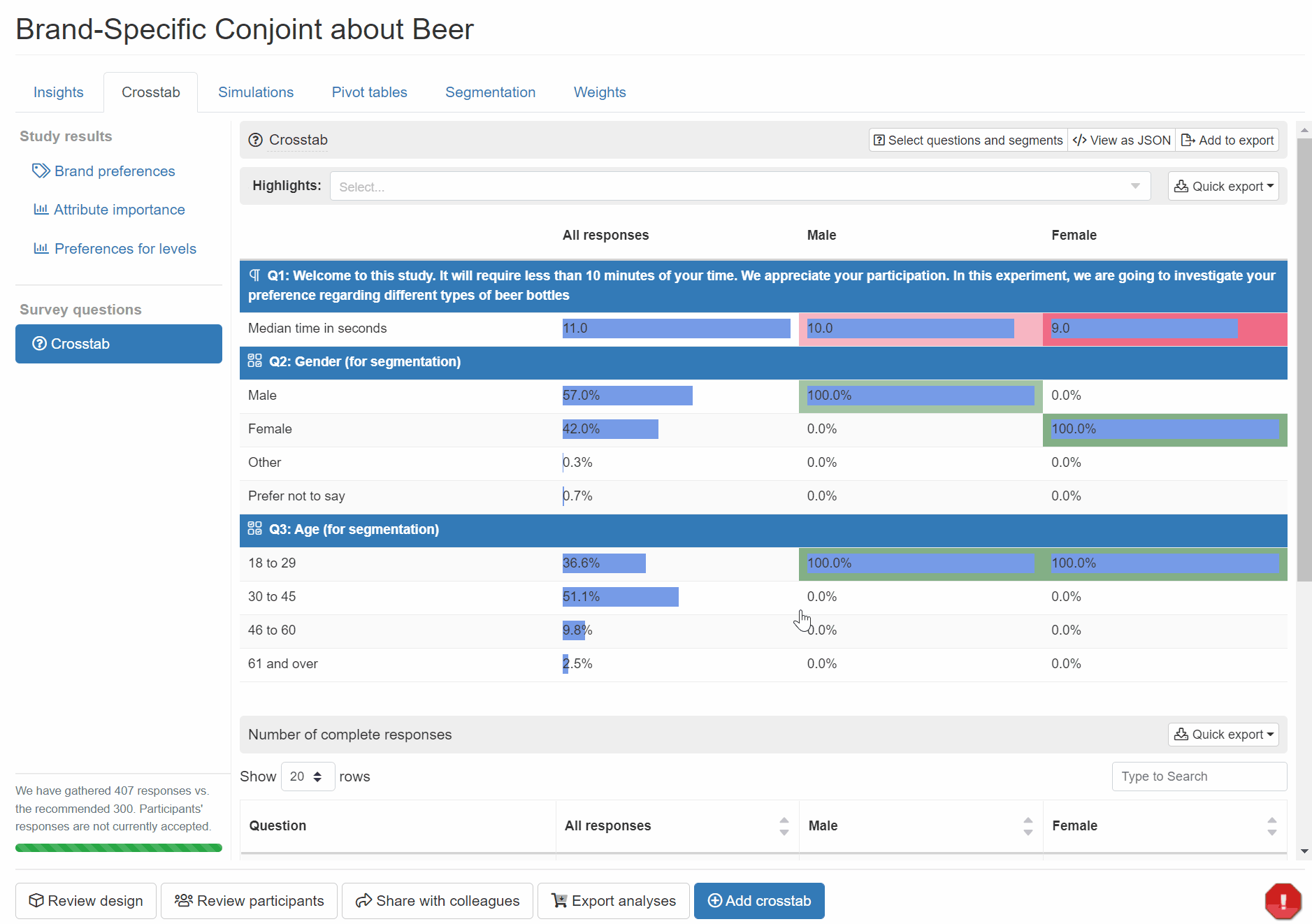

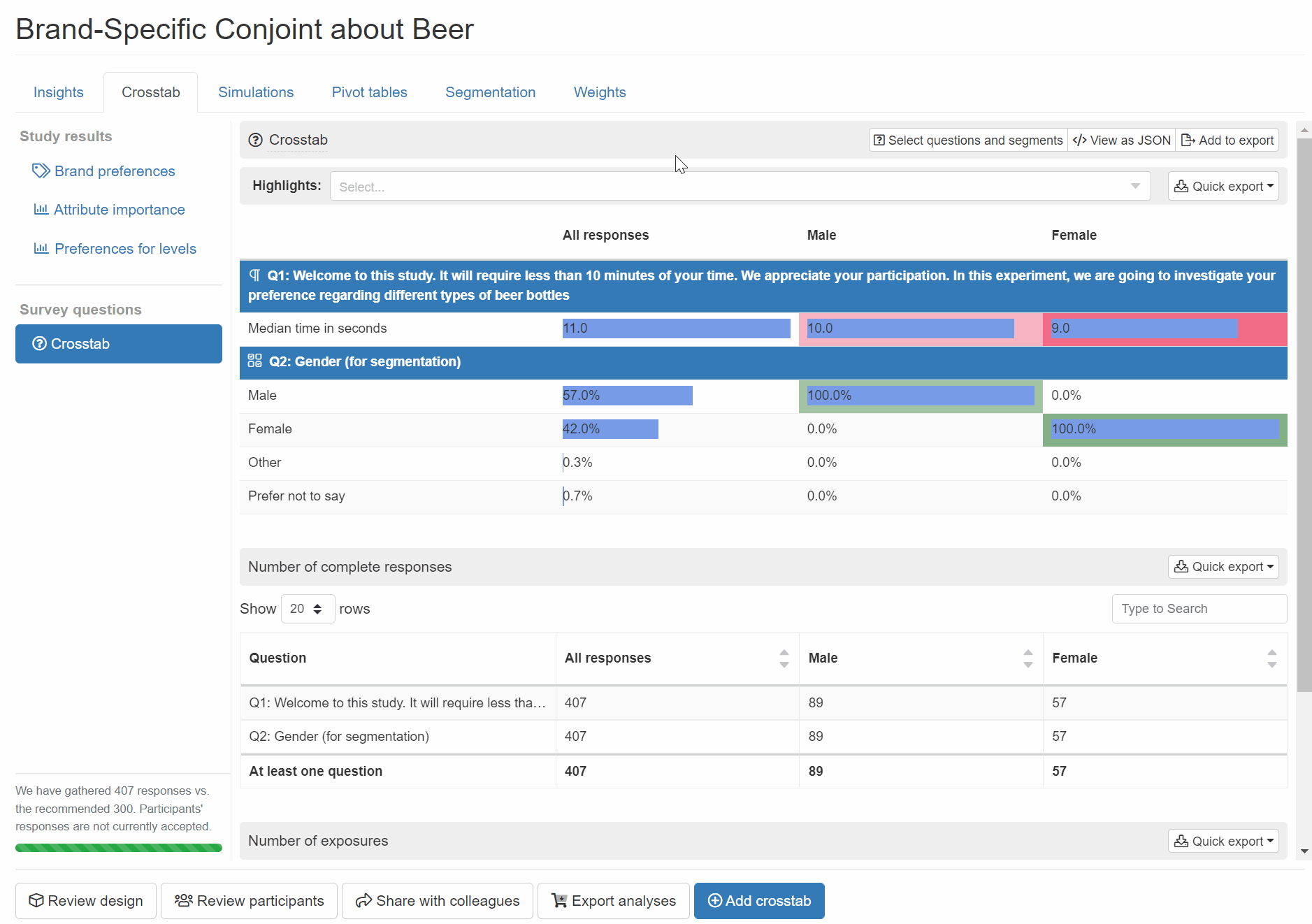

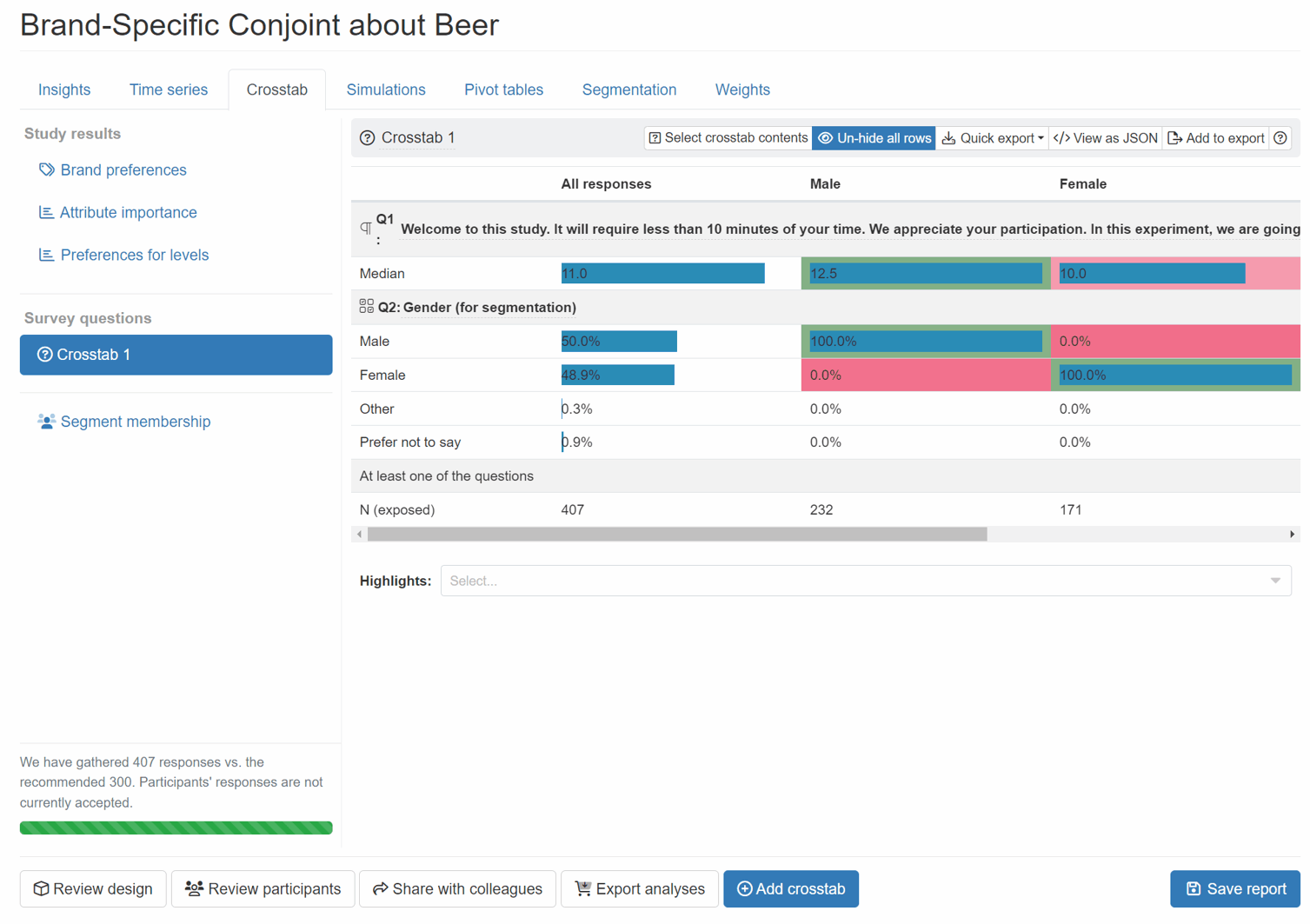

Crosstab Additional Questions setup

Creating additional Crosstabs

Additional crosstab tables can be generated by clicking on Add crosstab at the bottom of the window.

Then, select the desired questions and segments to be displayed. Click on Ok to generate the new crosstab table.

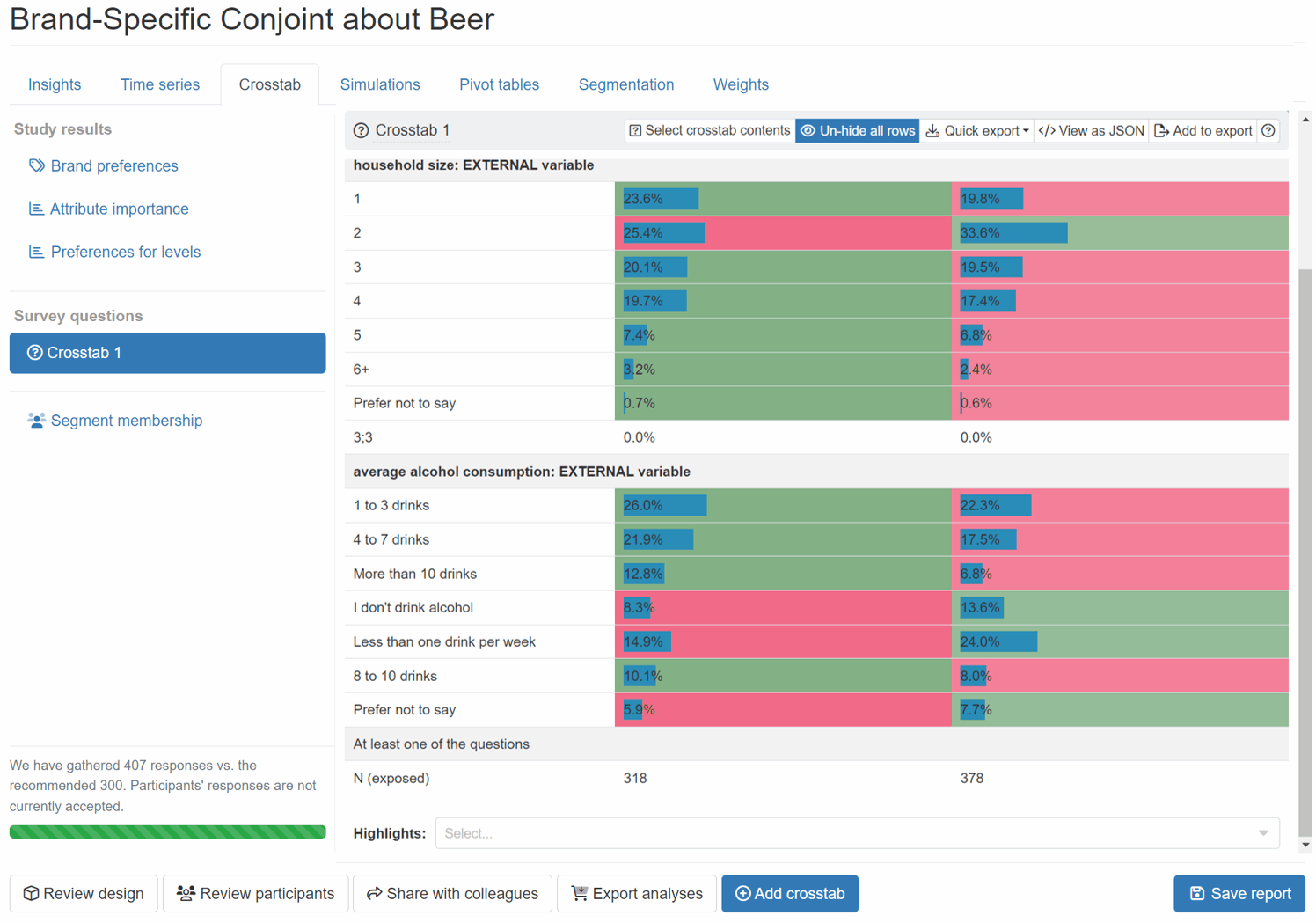

Crosstab create additional tables

Interpreting crosstab results

This subsection displays the results of additional questions. Each bar is scaled to its value size, and colour coded based on difference from all responses.

Depending on the question type, the table will display:

  • Top 2 box for Likert scale questions
  • Percentage of respondents who chose each option for multiple choice questions
  • Mean responses for Numeric questions
  • Mean responses per item for Constant sum questions
  • Top 2 box for Star rating questions
  • Mean word count and length in character for open-ended questions

The number of complete responses and exposures per segment for each question will be displayed under the crosstab tables.

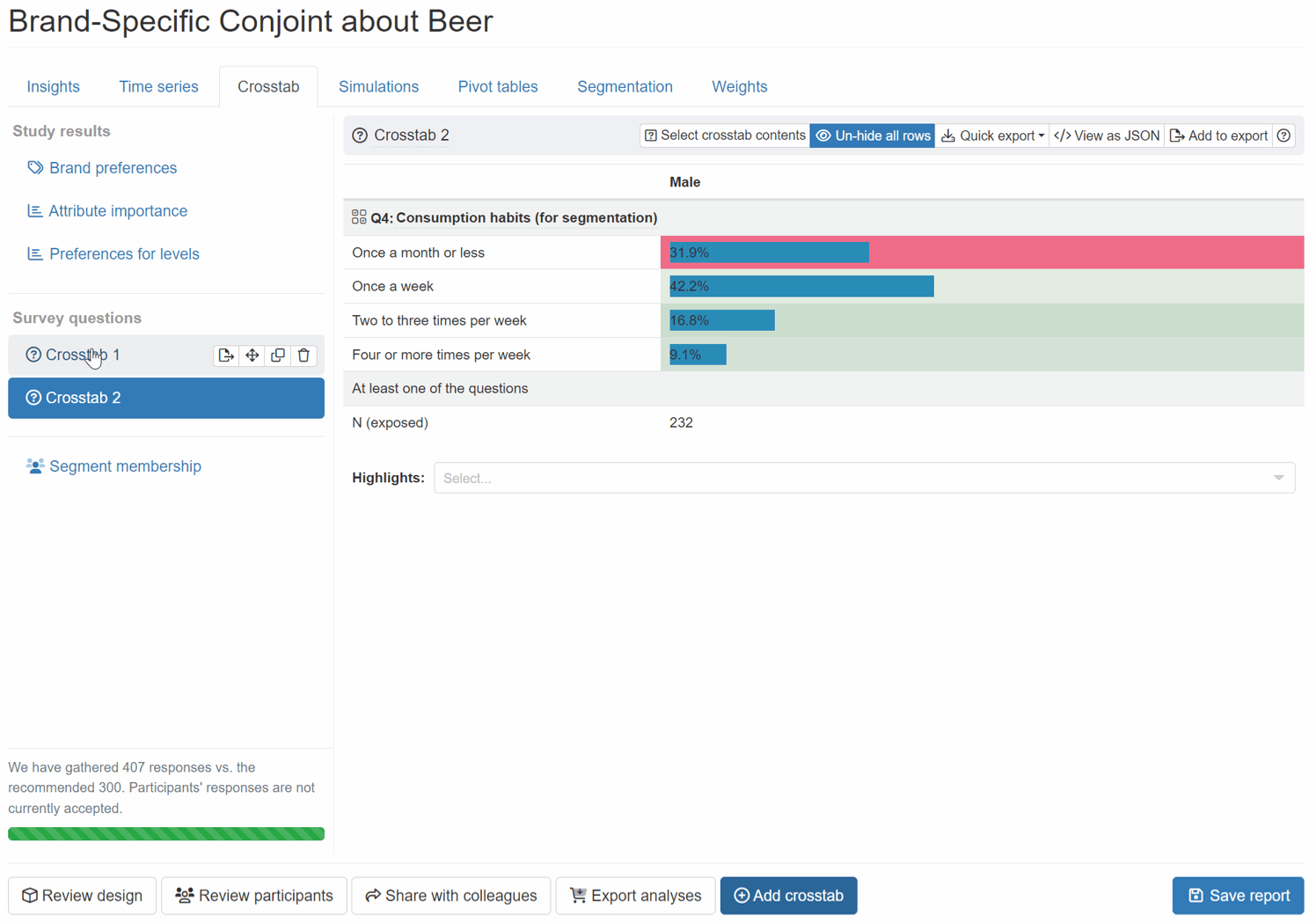

Crosstab Output 8 Additional Questions

Export to Excel

Want to perform further analysis offline? You can select any of the Crosstab report components to Quick export as either .csv or .xlsx format.

Quick Export for Crosstab Outputs
Looking to perform further analysis on your segments in Excel? The Conjointly Excel Plugin contains methods custom built by Conjointly to make analysing and visualising the difference between segments easier than ever!

Creating Crosstabs by segment in Excel

If you want to continue investigating crosstabs by segment in Excel, here is an alternate method for generating crosstab results in Excel:

  1. Create your segments.
  2. Export Excel Report by clicking Excel export at the bottom of the dashboard page.
  3. Crosstab by segments can now be found as a tab of your Excel export.
Crosstab by segment 1
Crosstab by segment 2

You can then highlight differences between subgroups using over-indexing analysis.
